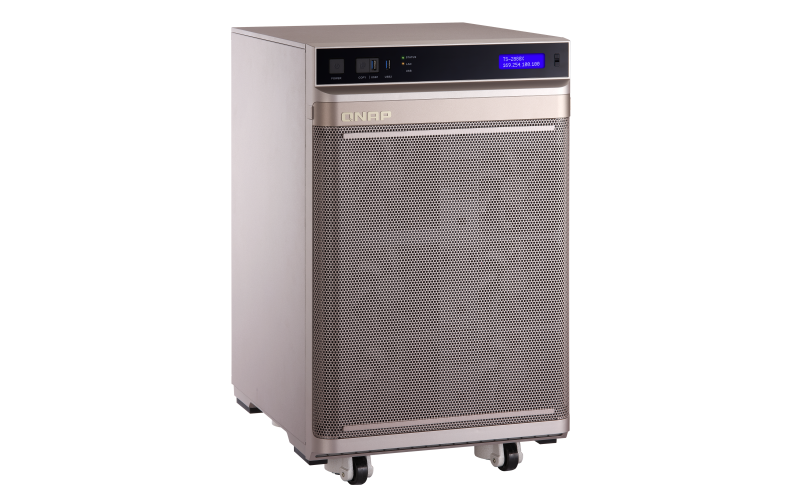

Thiết bị lưu trữ NAS QNAP TS-2888X-W2195-256G 28-bay

Thiết bị lưu trữ NAS QNAP TS-2888X-W2195-256G 28-bay

Liên hệ

Thiết bị lưu trữ QNAP TS-2888X-W2195-256G chuyên dùng cho phát triển AI, Deep Learning.

Intel® Xeon® W-2195 18-core 2.3 GHz Processor (burst up to 4.3 GHz) 64-bit x86 512 GB LRDIMM DDR4 ECC (8 x 64GB).

Mua ngay Gọi điện xác nhận và giao hàng tận nơi

Mô tả

Contents

Thiết bị lưu trữ NAS QNAP TS-2888X-W2195-256G 28-bay

1. Giới thiệu tổng quan thiết bị NAS QNAP TS-2888X-W2195-256G 28-bay

QNAP TS-2888X-W2195-256G nằm trong dòng TS-2888X với bộ vi xử lý Intel® Xeon® W TS-2888X cung cấp tối đa 18 lõi với 36 luồng và lên đến 4,5 GHz với Công nghệ Intel® Turbo Boost 2.0, kết hợp với bộ nhớ lên đến 512 GB DDR4 ECC RDIMM 2666 MHz để tải công việc nhanh chóng và xử lý.

TS-2888X kết hợp hiệu suất, tính toán và dung lượng lưu trữ cao với các khay ổ SSD U.2 để đáp ứng nhu cầu ứng dụng linh hoạt với hiệu quả chi phí tối đa thể hiện mọi tính năng tối ưu qua QNAP TS-2888X-W2195-256G.

Số lượng lõi CPU và tốc độ xung nhịp cao cung cấp đủ tài nguyên cho các tác vụ kết xuất và việc hỗ trợ các máy ảo hoạt động với phần mềm 3ds MAX® và Adobe® After Effects® làm cho TS-2888X trở thành một máy chủ kết xuất lý tưởng.

TS-2888X cũng như QNAP TS-2888X-W2195-256G có khả năng giải phóng toàn bộ tiềm năng của mạng tốc độ cao 25GbE và có thể hoạt động với các máy trạm sử dụng Adobe® Premiere Pro® và Final Cut Pro® để thực hiện quy trình chỉnh sửa video mượt mà.

Thiết bị lưu trữ NAS QNAP TS-2888X-W2195-128G 28-bay

2. Thông số kĩ thuật thiết bị lưu trữ NAS QNAP TS-2888X-W2195-256G 28-bay

Thông số phần cứng QNAP TS-2888X-W2195-256G

CPU	Intel® Xeon® W-2195 18-core 2.3 GHz Processor (burst up to 4.3 GHz)
CPU Architecture	64-bit x86
Floating Point Unit	✓
Encryption Engine	(AES-NI)
System Memory	256 GB RDIMM DDR4 ECC (8 x 32GB)
Maximum Memory	512 GB (8 x 64GB)
Memory Slot	8 x R-DIMM/LR-DIMM DDR4 IMPORTANT: You can only use one type of dual in-line memory module (DIMM) at a time. Do not use registered DIMM (RDIMM) with unbuffer DIMM (UDIMM) memory.
Flash Memory	4GB (Dual boot OS protection)
Drive Bay	8 x 3.5-inch + 20 x 2.5-inch
Drive Compatibility	3.5-inch bays: 3.5-inch SATA 6Gb/s, 3Gb/s hard disk drives 2.5-inch SATA 6Gb/s, 3Gb/s hard disk drives 2.5-inch SATA 6Gb/s, 3Gb/s solid state drives 2.5-inch bays: U.2 slot: 2.5-inch U.2 NVMe Gen3 x4/x2 solid state drives SATA slot: 2.5-inch SATA 6Gb/s, 3Gb/s solid state drives
Hot-swappable	✓
SSD Cache Acceleration Support	✓
Gigabit Ethernet Port (RJ45)	4
10 Gigabit Ethernet Port	2 x 10GBASE-T
Wake on LAN (WOL)	✓
Jumbo Frame	✓
PCIe Slot	8 Slot 1: PCIe Gen 3 x8 or x4 (CPU) Slot 2: PCIe Gen 3 x4 (CPU) Slot 3: PCIe Gen 3 x8 or x4 (CPU) Slot 4: PCIe Gen 3 x4 (CPU) Slot 5: PCIe Gen 3 x8 or x4 (CPU) Slot 6: PCIe Gen 3 x4 (CPU) Slot 7: PCIe Gen 3 x4 (PCH) Slot 8: PCIe Gen 3 x4 (PCH) Slot 1, 3, 5 provides the width of PCIe Gen.3 x8 when slot 2, 4, 6 is not in use. Slot 1, 3, 5 then provides the width of PCIe Gen.3 x4 only when an expansion board is installed in slot 2, 4, 6.
USB 2.0 port	4
USB 3.2 Gen 1 port	6
Audio Input	– (No longer available on units manufactured on or after 2021/1/1)
Audio Output	– (The line out jack and speaker are no longer available on units manufactured on or after 2021/1/1)
Form Factor	Tower
LED Indicators	3.5-inch HDD, 2.5-inch SSD, 2.5″ U.2 SSD, Status, LAN, USB port status
LCD Display/ Button	✓
Buttons	Power, Reset, USB Copy
Dimensions (HxWxD)	612 × 374 × 448 mm
Weight (Net)	26.7 kg
Weight (Gross)	31.46 kg
Operating temperature	0 – 40 °C (32°F – 104°F)
Storage Temperature	-20 – 70°C (-4°F – 158°F)
Relative Humidity	5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit	2000W PSU, 200-240Vac, Max Wattage: 2000W@200-240Vac 1500W@115-200Vac 1200W@110-115Vac
Power Consumption: Operating Mode, Typical	221.1 W Tested with drives fully populated.
Fan	1 x 90mm, 12VDC 9 x 120mm, 12VDC
Sound Level	33.6 db(A)
System Warning	Buzzer

Thông số phần mềm QNAP TS-2888X-W2195-512G

Operating System	QTS 5.0.0
Supported Client Operating Systems	Apple Mac OS 10.10 or later Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux IBM AIX 7, Solaris 10 or later UNIX Microsoft Windows 7, 8, 10 and 11 Show more…
Supported Browsers	Apple Safari (latest version) Google Chrome (latest version) Microsoft Edge (latest version) Mozilla Firefox (latest version)
Supported Languages	Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish
Storage Pool	✓
SED Storage Pool	✓
Maximum Pool size	308 TB
Maximum number of storage pool	128
Volume Type	Thick, Thin, Static
Maximum volume size	250 TB Note: At least 4 GB RAM is required.
Maximum number of volume	128
Maximum shared folder size	250 TB
Maximum number of shared folder	512
JBOD Expansion	✓
VJBOD / VJBOD Cloud	✓
iSCSI Service	✓
Fibre Channel Service	✓
LUN Type	Thick, Thin
File-based iSCSI LUN	✓
Block-based iSCSI LUN	✓
Maximum LUN size	250 TB Note: At least 4 GB RAM is required.
Maximum number of targets LUN	256
Auto Tiering	✓
RAID Type	8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60 6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50 4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10 2-bay: JBOD, Single, RAID 0, 1
RAID Group	To ensure data security, system stability, and storage performance, the maximum number of drives for a single RAID group is now 16 (applicable to RAID 5, RAID 6, RAID TP, and subgroups of RAID 50 and RAID 60). Nevertheless, users can combine multiple RAID groups into a large storage pool that contains more than 16 drives, using RAID 50, RAID 60, or RAID 10 as the RAID configuration. This enhancement will only be applied to new RAID groups. All existing RAID groups and storage systems will not be affected.
RAID Level Migration	✓
RAID Expansion (by adding Disk)	✓
RAID Expansion (by replacing bigger Disks)	✓
Storage Pool Expansion (by adding RAID Group)	✓
RAID Hot Spare	Global, Local
RAID Sync/Rebuild/Scrubbing	✓
Internal drive	EXT4
External drive	EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT (optional for ARM model) Note: To use exFat in certain models you must purchase an exFAT driver license from License Center.
Disk, Enclosure Locate	✓
Disk S.M.A.R.T. Scan	✓
Disk S.M.A.R.T. Data Migration	✓
Ironwolf Health Management	✓
Secure Erase	✓
SSD Trim	✓
SSD Life Estimation	✓
Disk Roaming	✓
Disk Standby	✓
Volume Snapshot	✓
LUN Snapshot	✓
Maximum Snapshot (Per System)	Check maximum number of snapshots of your NAS
Maximum Snapshot (Per Volume / LUN)	Check maximum number of snapshots of your NAS
Minimum Snapshot Interval	5 minutes
Snapshot Retention Policy	✓
Self-serve Snapshot Recovery	✓
Application Consisted Snapshot	✓
Snapshot Full Clone	✓
Snapshot Replica / Vault	✓
SSD read-only Cache	✓
SSD read-write cache	✓
SSD write-only cache	✓
SSD Cache Maximum Size	Check your QNAP NAS cache capacity and RAM requirements
SSD Cache RAID	0, 1, 5, 6, 10
SSD profiling tool	✓
External Device Management	✓
Mount Smart Phone (MTP)	✓
External RAID Device (QNAP so on) Management (External Device Mode)	✓
External RAID Device (QNAP so on) Management (NAS Mode)	✓
File Server	File sharing across Windows, Mac, and Linux/UNIX Microsoft networking (CIFS/SMB) Apple networking (AFP) NFS version 3/4 services
FTP Server	QuFTP FTP, SFTP and TFTP protocols FTP over SSL/TLS (explicit FTPS) FXP support
Maximum FTP connection	1024
File Station (Web)	✓
Local user account	4,096
Local group account	512
Domain user/group account	200,000
Domain Security	✓
Domain Controller	✓
Shared folder permission	✓
Advanced folder permission	, (AFP, CIFS/SMB, FTP, and File Station)
Windows ACL	, (CIFS/SMB)
User quota	✓
Group quota	✓
Folder quota	, (Snapshot shared folder)
Home folder	✓
Resource Monitor	✓
SNMP	V2, V3
Network recycle bin	Recover files deleted using AFP, CIFS/SMB, and File Station Automatic cleanup and file type filter
System Log & Notification Center	Log recording: 3,000 event per hour
Smart Fan	✓
Schedule on/off	✓
Internet protocol	IPv4, IPv6
Virtual Switch	✓
Port trunking	, (7 modes)
VLAN	✓
DHCP Server	✓
DDNS (Dynamic Domain Name Service)	✓
Network access protection with auto-blocking	SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP
Security Counselor	✓
Malware Remover	✓
AES 256-bit Volume Encryption validated by FIPS 140-2 CAVP	✓
2-step verification	✓
Allow/Deny List	✓
Access Protection	✓
Service binding	✓
Firewall	✓
vSphere Web Client Plug-in	✓
VMware vSphere VAAI for iSCSI	✓
VMware vSphere VAAI for NAS	✓
Windows ODX	✓
Windows/VMware Snapshot Agent	✓
HTTP/HTTPS Connections	TLS 1.0/1.1/1.2/1.3
Supports WebDAV Connection	✓
Supports Virtual Hosts	32
Qsync	Note: At least 1 GB RAM is required.
[Qsync] Management Mode	User customization, Central
[Qsync] Qsync client supported platforms	Windows, macOS, Ubuntu, Android, and iOS
[Qsync] Maximum number of version control	64
HybridMount	Note: At least 1 GB RAM is required.
[HybridMount] File Cloud Gateway	Concurrent Connections = 20 Upload & 20 Download
[HybridMount] Network Drive Mount	✓
[HybridMount] Free cloud gateway sessions	2
HBS (Hybrid Backup Sync)	Note: At least 1 GB RAM is required.
[HBS (Hybrid Backup Sync)] NAS to NAS backup	✓
[HBS (Hybrid Backup Sync)] NAS to rsync backup	✓
[HBS (Hybrid Backup Sync)] NAS to FTP backup	✓
[HBS (Hybrid Backup Sync)] Cloud Backup	✓
[HBS (Hybrid Backup Sync)] Cloud Sync	✓
[HBS (Hybrid Backup Sync)] 2-way and Active Sync	✓
[HBS (Hybrid Backup Sync)] Backup Deduplication	✓
[HBS (Hybrid Backup Sync)] Real-time backup	✓
[HBS (Hybrid Backup Sync)] Apple Time Machine Backup	✓
[HBS (Hybrid Backup Sync)] External drive backup	✓
[HBS (Hybrid Backup Sync)] Maximum number of backup job	400
Hyper Data Protector	✓
Boxafe	Note: At least 1 GB RAM is required.
[Boxafe] Office 365 Backup	✓
[Boxafe] Google Workspace Backup	✓
[Boxafe] Full-text search	✓
Qsirch	Note: This feature is supported by all QNAP NAS devices with at least 2 GB of memory
[Qsirch] Previews	Photos, music, videos, PDFs, Gmail, and others
[Qsirch] Integrate Mac Finder	✓
[Qsirch] Advanced picture search	✓
[Qsirch] Search filters	✓
QuMagie	Note: At least 1 GB RAM is required.
[QuMagie] Browse photos	✓
[QuMagie] Virtual and smart albums	✓
[QuMagie] AI-assisted photo management	People, things, places, and others
Antivirus (free)	✓
McAfee (License)	✓
QVPN Service	Note: At least 1 GB RAM is required.
[QVPN Service] Remote Access	PPTP, L2TP/IPSec, OpenVPN, WireGuard, QBelt (QNAP proprietary)
[QVPN Service] Supportedd utility and mobile app	Windows, macOS, iOS, and Android
[QVPN Service] Supported maximum clients	100
HD Station	✓
LDAP Server	✓
RADIUS	✓
SQL server	✓
License Center	✓
Multimedia Console	✓
Photo Station	✓
Music Station	✓
Video Station	✓
Download Station	✓
Notes Station	✓
Qfiling	✓
Media Streaming add-on	✓
Q’center	Note: The application is available in the App Center and in virtual appliance marketplaces (VMware vSphere ESXi and Microsoft Hyper-V).
Q’center Server	✓
Q’center Agent	✓
Connect to Q’center	✓
Virtualization Station	Note: At least 2 GB RAM is required.
[Virtualization Station] Supports Virtual machine instances	Windows, Linux, Unix, and Android
[Virtualization Station] VM importing, exporting, cloning, snapshot capturing, backup, and restoration	All function is Fine.
[Virtualization Station] Virtual switches	Can create a virtual switch
[Virtualization Station] GPU pass-through	Not support GPU
Container Station	Note: At least 1 GB RAM is required.
[Container Station] Supported type	LXC/LXD and Docker Note: LXD has been supported after Container Station 2.4
[Container Station] Docker Hub Registry	✓
[Container Station] Container importing and exporting	✓
[Container Station] Console mode	✓
Linux Station	✓
Supports Linux Station versions	16.04, 18.04, and 20.04
Linux Station Center	✓
QVR Pro	Note: At least 4 GB RAM is required. The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/go/qvr-nas-selector.
[QVR Pro] Recording Technique	Index database based
[QVR Pro] License Type	Perpetual
[QVR Pro] User-defined trigger events	✓
[QVR Pro] Metadata	✓
[QVR Pro] QVR Pro Client (Desktop)	Windows, macOS, and QNAP HybridDesk Station
[QVR Pro] QVR Pro Client (Mobile)	Android and iOS
[QVR Pro] Recording camera streams	H.264
[QVR Pro] Free built-in camera channels	8
QVR Elite	Note: At least 1 GB RAM is required. The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/go/qvr-nas-selector.
[QVR Elite] Recording Technique	Standard MP4 file based
[QVR Elite] License Type	Subscription-based
[QVR Elite] User-defined trigger events	✓
[QVR Elite] QVR Pro Client (Desktop)	Windows, macOS, and QNAP HybridDesk Station
[QVR Elite] QVR Pro Client (Mobile)	Android and iOS
[QVR Elite] Recording camera streams	H.264
[QVR Elite] Free built-in camera channels	2
QVR Pro Client	✓
[QVR Pro Client] Dynamic View Layout	✓
[QVR Pro Client] Windows	✓
[QVR Pro Client] Mac	✓
[QVR Pro Client] HybridDesktop	✓
[QVR Pro Client] iOS	✓
[QVR Pro Client] Android	✓
QVR Center	Note: At least 4 GB RAM is required.
[QVR Center] Log management	✓
[QVR Center] Central monitoring across multiple servers	✓
QVR Guard	Note: At least 4 GB RAM is required.
[QVR Guard] Failover design	✓
[QVR Guard] Viewing task details	✓
[QVR Guard] Automatic switch between Standby and Takeover modes	✓
