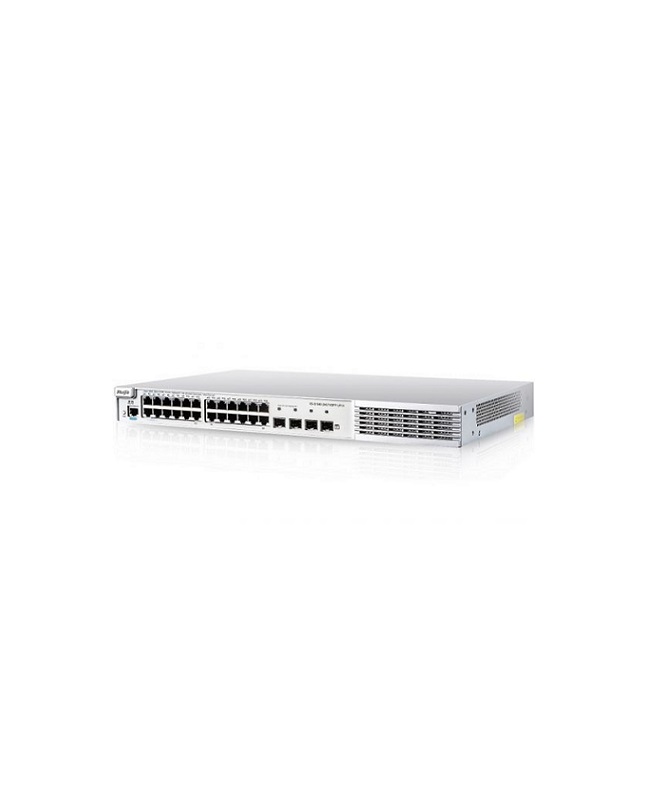

24-port 10/100/1000 Base-T | Managed Switch | RUIJIE XS-S1960-24GT4SFP-H | Tốc độ chuyển mạch 56Gbps | Memory 512MB
12,619,000 ₫
Sản phẩm Ruijie XS-S1960-24GT4SFP-H
– 24 cổng 10/100/1000BASE-T
– 4 cổng 1000M SFP ports
– CPU Memory: 512MB
– Flash: 256MB
– Tốc độ chuyển mạch: 56Gbps
– Nguồn điện: AC 100~240V, 50/60Hz
– Kích thước: 440 × 268 × 44.5 mm
– Nhiệt độ hoạt động: 0°C~50°C
– Dễ dàng quản lý và cấu hình qua Ruijie cloud
– Tích hợp Web management
– Hỗ trợ IEEE802.1Q/ MAC VLAN/ Private VLAN/ Protocol VLAN/ Voice VLAN
Mô tả
Contents
24-port 10/100/1000 Base-T Managed Switch RUIJIE XS-S1960-24GT4SFP-H
1. Thông tin nhanh
Khi mua hàng tại wifiprovn thì khách hàng sẽ được tặng 1 tài khoản quản lý đám mây Ruijie Cloud để khách hàng có thể dễ dàng quản lý tập trung đồng bộ với nhiều thiết bị Ruijie cùng với nhiều nơi khác nhau.
– Hãng sản xuất: Ruijie Networks Co., Ltd
– Tên sản phẩm: Ruijie XS-S1960-24GT4SFP-H
– Bảo hành: Theo chính sách bảo hành của hãng
– Giao hàng tất cả các tỉnh thành.
2. Ưu điểm của XS-S1960-24GT4SFP-H
– 24 cổng 10/100/1000BASE-T
– 4 cổng 1000M SFP ports
– CPU Memory: 512MB
– Flash: 256MB
– Tốc độ chuyển mạch: 56Gbps
– Nguồn điện: AC 100~240V, 50/60Hz
– Kích thước: 440 × 268 × 44.5 mm
– Nhiệt độ hoạt động: 0°C~50°C
– Dễ dàng quản lý và cấu hình qua Ruijie cloud
– Tích hợp Web management
– Hỗ trợ IEEE802.1Q/ MAC VLAN/ Private VLAN/ Protocol VLAN/ Voice VLAN
– Các chứng nhận: EN 60960-1,EN 55022, EN55032, EN 55024, EN 61000-4-2, EN 61000-4-3, N 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 61000-3-2, EN 61000-3-3
3. THÔNG SỐ KỸ THUẬT
| Model | XS-S1960-24GT4SFP-H |
| Ports | 24 x10/100/1000BASE-T ports 4 x 1G SFP ports (non-combo) |
| Fan Slots | Fanless |
| Management Ports | 1 console port |
| Port Buffer | 1.5MB |
| Switching Capacity | 56Gbps |
| Packet Forwarding Rate | 42Mpps |
| ARP Table | 1 |
| MAC Address | 16K |
| Routing Entries | 500 |
| IP Host Entries (IPv4/IPv6) | 500 (IPv4/IPv6) |
| ACL Entries | Up to 1,500 |
| ACL | Standard/Extended/Expert ACL, Extended MAC ACL, ACL 80, IPv6 ACL, ACL logging, ACL counter, ACL remark, Global ACL, ACL redirect |
| QoS | 802.1p/DSCP/TOS traffic classification; Multiple queue scheduling mechanisms, such as SP, WRR, DRR, SP+WFQ, SP+WRR, SP+DRR; Input port-based speed limit; Port-based traffic recognition; Each port supports 8 queue priorities |
| VLAN | 4K 802.1q VLANs, Port-based VLAN, MAC-based VLAN, Protocol-based VLAN, Private VLAN, Voice VLAN, QinQ, IP subnet-based VLAN, GVRP |
| QinQ | Basic QinQ, Flexible QinQ, 1:1 VLAN switching |
| Link Aggregation | AP, LACP, Flow balance |
| Port Mirroring | Many-to-one mirroring, One-to-Many mirroring, Flow-based mirroring, Over devices mirroring, VLAN-based mirroring, VLAN-filtering mirroring, AP-port mirroring, RSPAN, ERSPAN |
| Spanning Tree Protocols | IEEE802.1d STP, IEEE802.1w RSTP, Standard 802.1s MSTP, Port fast, BPDU filter, BPDU guard, TC guard, TC filter, TC protection, LOOP guard, ROOT guard |
| DHCP | DHCP server, DHCP client, DHCP snooping, DHCP relay, IPv6 DHCP snooping, IPv6 DHCP client, IPv6 DHCP relay |
| Multiple Spanning Tree Protocol (MSTP) Instances | 64 |
| Maximum Aggregation Port (AP) | Up to 128 |
| Multicast | IGMP v1/v2 snooping, IGMP SGVL/IVGL, IGMP filter, IGMP fast leave |
| EEE Format | Support IEEE 802.3az standard |
| L2 Features | MAC, EEE, ARP, VLAN, QinQ, Link aggregation, Mirroring, STP, RSTP, MSTP, Broadcast storm control, IGMP v1/v2 snooping, IGMP SGVL/IVGL, IGMP filter, IGMP fast leave, DHCP, Jumbo frame, RLDP, LLDP, REUP, G.8032 ERPS, Layer 2 protocol tunnel |
| Layer 3 Features | IPv4 static routing, IPv6 static routing, RIP, RIPng, ARP proxy, Neighbor Discovery |
| Layer 3 Protocols (IPv4) | Static routing, RIP, RIPng |
| IPv4 Features | Ping, Traceroute |
| IPv6 Features | 0-64 any length mask, ICMPv6, Neighbor Discovery, Manually configure local address, Automatically create local address, IPv6 Ping, IPv6 Tracert, IPv6 extender option head |
| Basic IPv6 Protocols | IPv6 addressing, Neighbor Discovery (ND), IPv6 ACL, ICMPv6, IPv6 Ping, IPv6 Tracert |
| IPv6 Routing Protocols | Static routing, RIPng |
| VSU (Virtual Switch Unit) | Support (Up to 4 stack members) |
| Power Supply | 100~240V, 50/60Hz |
| Dimensions | 440 × 268 × 44.5 mm |
| Weight | ≤3.5kg |
Tham khảo thêm các dòng sản phẩm series XS-S1960
Product Model | XS-S1960-10GT2SFP-P-H | XS-S1960-24GT4SFP-H | XS-S1960-24GT4SFP-UP-H | XS-S1960-48GT4SFP-H | |
Ports | 10/100/1000BASE-T | 10 | 24 | 24 | 48 |
1000M SFP | 2 | 4 | 4 | 4 | |
Power over Ethernet | PoE | ✓ | n/a | ✓ | n/a |
PoE/PoE+ | 8 | / | 24 | n/a | |
H-PoE Enabled Ports | n/a | n/a | 4 | n/a | |
IEEE802.3bt | n/a | n/a | ✓ | n/a | |
IEEE802.3af | ✓ | n/a | ✓ | n/a | |
IEEE802.3at | ✓ | n/a | ✓ | n/a | |
PoE Power Budget | 125W | n/a | 370W | n/a | |
Physical | Packet Buffer | 12Mbit | 12Mbit | 12Mbit | 12Mbit |
CPU Memory | 512MB | 512MB | 512MB | 512MB | |
Flash | 256MB | 256MB | 256MB | 256MB | |
Dimensions(WxDxH) | 340x260x43.6mm | 440x260x43.6mm | 440x260x43.6mm | 440x260x43.6mm | |
Unit Weight | 2.5kg | 3.5kg | 5.5kg | 4kg | |
Power Supply | Type | Internal | Internal | Internal | Internal |
Frequency | 50/60Hz | ||||
AC Voltage | 100~240V | ||||
AC Current | 2A | 0.6A | 6.8A | 1.5A | |
Rated HVDC voltage | 240V DC | ||||
Maximum HVDC voltage | 192~290V DC | ||||
Maximum Power Rating | 165W | 24W | 460W | 40W | |
Cooling | Fanless | Fanless | Fan | Fan | |
Certifications | Safety | EN 60950-1 | |||
EMC | EN 300 386 | ||||
Emissions | EN 55032 | ||||
Immunity Generic | EN 55024 | ||||
ESD | EN 61000-4-2 | ||||
Radiated | EN 61000-4-3 | ||||
EFT/Burst | EN 61000-4-4 | ||||
Surge | EN 61000-4-5 | ||||
Conducted | EN 61000-4-6 | ||||
Power frequency magnetic field | EN 61000-4-8 | ||||
Voltage dips and interruptions | EN 61000-4-11 | ||||
Harmonics | EN 61000-3-2 | ||||
Flicker | EN 61000-3-3 | ||||
RoHS | ✓ | ✓ | ✓ | ✓ | |
EEE | ✓ | ✓ | ✓ | ✓ | |
Operating Temperature | 0 ℃ ~ 45 ℃ | ||||
Storage Temperature | -40 ℃ ~ 70 ℃ | ||||
Operating Humidity | 10%~90% RH | ||||
Storage Humidity | 5%~95% RH | ||||
Operating Altitude | -50m ~ 5000m | ||||
MTBF(hours) | 590278 | 602365 | 361712 | 524960 | |
Warranty | 3-Year Warranty Free of Charge | ||||
Package Contents | Ruijie XS-S1960-H Series Switch | ||||
Performance | Switching Capacity | 24Gbps | 56Gbps | 56Gbps | 104Gbps |
Forwarding Rate | 18Mpps | 42Mpps | 42Mpps | 78Mpps | |
ARP Table Size | 500 | 1K | 1K | 1K | |
MAC Table Size | 16K | 16K | 16K | 16K | |
L2 Switching | STP | ✓ | |||
RSTP | ✓ | ||||
MSTP | ✓(64 instances) | ||||
Port Grouping | ✓(LACP) | ||||
VLAN | ✓(IEEE802.1Q/MAC VLAN/Private VLAN/Protocol VLAN/Voice VLAN) | ||||
GVRP | ✓ | ||||
IGMP Snooping | ✓((v1/v2/v3)/SGVL/IVGL/IGMP filter/IGMP fast leave) | ||||
Jumbo Frame | 9KB | ||||
QinQ | ✓ | ||||
G.8032/ERPS | ✓ | ||||
L3 | IPv4 Routing | Static/RIP/OSPFv1/v2/VRRP | |||
IPv6 Routing | Static/RIPng/OSPFv3/ND(Neighbor Discovery)/VRRPv3/VRRP+ | ||||
Ping | ✓ (IPv4 and IPv6) | ||||
Traceroute | ✓ (IPv4 and IPv6) | ||||
DHCP | ✓ (Server/Client/Relay) | ||||
ARP Features | ✓(ARP Proxy/Trusted ARP/ARP-Based IP Guard/Gratuitous ARP/ARP-Check/) | ||||
Reliability | VSU | n/a | ✓ (up to 4 members) | ||
GR | ✓ | ||||
REUP | ✓ | ||||
RLDP | ✓ | ||||
DLDP | ✓ | ||||
Security | CPP | ✓ | |||
NFPP | ✓ | ||||
SSH | ✓ | ||||
SSL | ✓ | ||||
IEEE802.1X | ✓ | ||||
Port Security | ✓ | ||||
Radius | ✓ | ||||
TACACS+ | ✓ | ||||
DAI | ✓ | ||||
IP-MAC Binding | ✓ | ||||
ACL | ✓ (IPv4 and IPv6, Standard IP ACL, Extended IP ACL, MAC-extended ACL, Time-based ACL, Expert ACL, ACL80, IPv6 ACL, SVI router ACL, ACL logging, ACL counter, ACL remark, ACL redirection, Security channel, Protected port) | ||||
IP Source Guard | ✓ (IPv4 and IPv6) | ||||
DHCP Snooping | ✓ (IPv4 and IPv6) | ||||
QoS | Stream classification | ✓ (Classification based on IEEE802.1p/DSCP/TOS) | |||
Shaping | ✓ (Rate-limit on ingress/egress traffic on interface) | ||||
Congestion avoidance | ✓ (RED, WRED, Tail drop) | ||||
Congestion management | ✓(SP, WRR, DRR, WFQ, SP+WFQ, SP+WRR, SP+DRR, 8 queue priorities per port) | ||||
Management | Web User Interface | ✓ | |||
HTTP/HTTPS | ✓ | ||||
Ruijie Cloud Management | ✓ | ||||
RG-SNC Management | ✓ | ||||
Command Line Interface | Telnet/Console | ||||
SNMP | ✓ | ||||
Smart+ for CCTV | ✓(Auto Smart Deployment/Remote Reboot Helper) | ||||
SYSLOG | ✓ | ||||
NTP | ✓ | ||||
DNS | ✓ | ||||
SPAN | ✓ | ||||
RSPAN | ✓ | ||||
ERSPAN | ✓ | ||||
Public MIBs | ✓ | ||||
Private MIBs | ✓ | ||||
RMON | ✓(1/2/3/9) | ||||
sFlow | ✓ | ||||
Firmware Upgrade | ✓ | ||||
Port Mirroring | ✓ | ||||
Tham khảo thêm tại: https://www.ruijienetworks.com/products/switches/small-business-switches/xs-s1960-h-series
