Technical Specification

Model

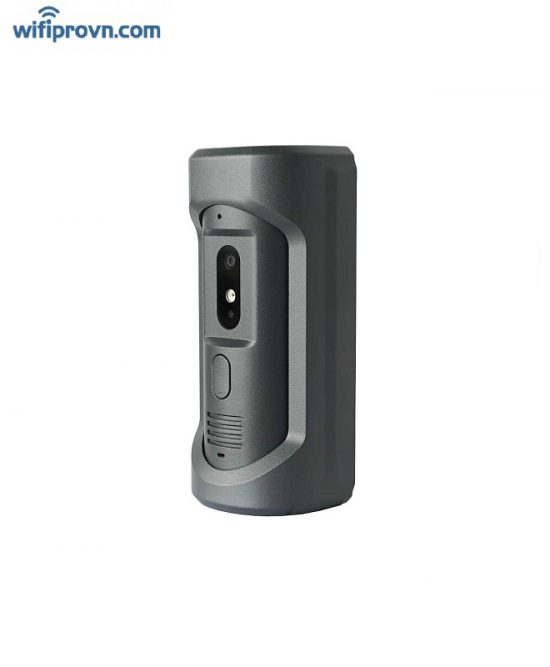

VTO2101E-P-S1

System

Main Processor

Embedded Micro Processor

Operation System

Embedded LINUX OS

Camera

Image Sensor

1/2.7” 2MP CMOS

Focal Length

2.8mm

Angle of View

H:77°, V:55°, D:100°

Angle of View adjustment

Horizontal: -45° – +45°

Video

Video Compression

H.264

Video Streaming

Dual Stream

Day/Night

Auto(ICR), 5m

BLC Mode

WDR

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

OSD

Support

Audio

Audio Compression

G.711

Audio Input

Omnidirectional Mic

Audio Output

Built-in Speaker

Bidirectional Talk

Support Dual-way Bidirectional talk

Audio processing

Noise suppression, Echo cancellation

Operation Mode

Keypad

1 Mechanical Button

Interface

Door Control

1

Alarm In

1

RS485

1

Network

Ethernet

10M/100Mbps Self-adaptive

Network Protocol

TCP/IP, SIP

General

Ingress Protection

IK10, IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)

Tamper Switch

1

Tamper Screw

Support

Installation

Surface

Material

Front Panel: Zinc alloy

Rear Panel: Aluminum alloy

Holder: Aluminum alloy

Power

DC 12V, PoE(802.3af)

Power Consumption

Standby ≤2.5W, Work ≤7W

Working Temperature

﹣30°C to +60°C

Relative Humidity

10%RH–90%RH

Dimensions

163.0mm×73.0mm×54.5.0mm

Weight

0.8kg
